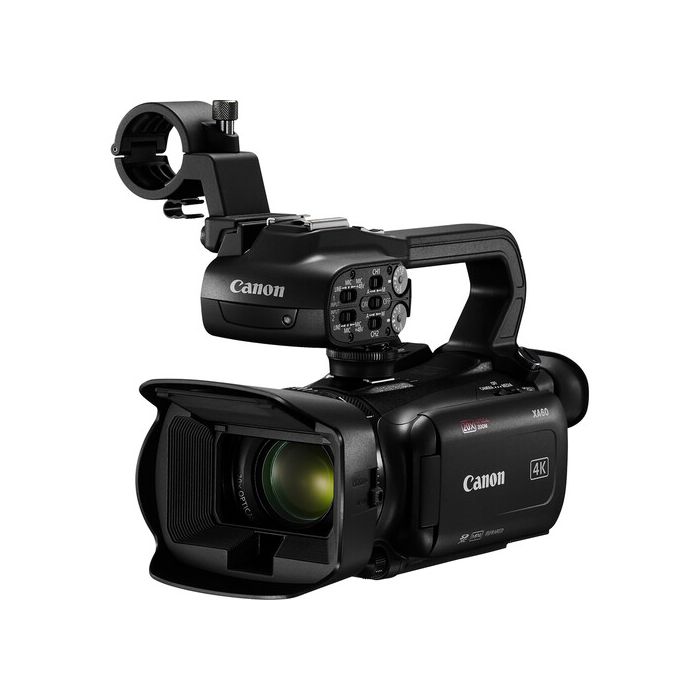

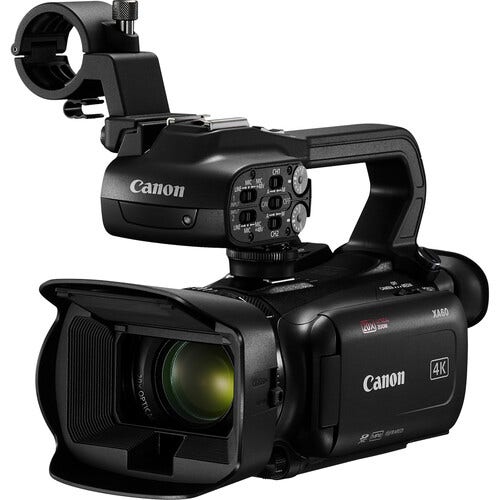

Canon XA60 4K Camcorder

Canon 4K Sensor

A 4K sensor and DIGIC DV6 image processor deliver crisp, sharp UHD images, and an 8-blade iris achieves cinema-style out-of-focus highlights. Frame your shot with the ultrabright 3.5" LCD or use the built-in OLED electronic viewfinder (EVF).

On-Screen Display (OSD) "Time Stamp" Recording

OSD recording embeds date, time, timecode, and other data into your original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers.

UVC Livestreaming

Stream HD video directly from the camera via UVC1 to a Windows or macOS computer. Audio output through USB is not supported.

Professional Audio Controls

Two XLR terminals on a detachable handle plus a 4-channel linear PCM bring a suite of pro audio options.

4K 20x Optical Zoom Lens

The Canon lens covers a 29.3mm wide angle (35mm equivalent) with a powerful 612mm reach. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon's Dynamic IS 5-axis image stabilization with dynamic mode, resulting in clear, sharp motion video.

Fast, Precise Focusing with Face Detection

The X65 features adjustable focusing speeds, and an advanced Hybrid AF system provides fast and precise focusing. Use the ultrabright high-resolution 3.5" LCD to set focus by touching the AF point on the screen. Face Detection AF and Face Tracking are available, while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for Flexible Recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160 Mb/s at 30P and Full HD 45 Mb/s at 60p/60i and 30/24p. For smaller files, record MP4 in 4K 150 Mb/s at 30/24p and Full HD 35 Mb/s or 17 Mb/s at 60/30/24p.

Professional Input and Output

Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in Full 5x HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.

Key Features

4K sensor and DIGIC DV6 image processor for sharp UHD video
20x optical zoom lens (29.3–612mm equivalent) with 800x digital zoom
Dynamic IS 5-axis image stabilisation for clear, steady footage
Advanced Hybrid AF with Face Detection and Face Tracking
UVC livestreaming via USB (HD video direct to Windows/macOS)
Professional audio controls with two XLR terminals on a detachable handle
Dual SD card slots for simultaneous backup or relay recording

Benefits

* Broadcast-Ready Quality: Record in flexible XF-AVC (up to 160 Mb/s) or MP4 formats to perfectly suit your post-production and delivery workflow.

* Streamlined Live Production: Connect directly to your computer via USB for instant HD UVC livestreaming without the need for additional capture cards.

* Compliance and Security: On-Screen Display (OSD) recording embeds crucial date, time, and timecode data directly into your files, an essential feature for legal and law enforcement videography.

* Pro-Level Audio: Capture pristine, broadcast-quality sound using the 4-channel linear PCM and professional XLR inputs.

Specifications

Sensor: 4K UHD Sensor
Processor: DIGIC DV6
Lens: 20x Optical Zoom (29.3mm - 612mm 35mm equivalent)
Digital Zoom: Up to 800x magnification
Iris: 8-blade circular aperture
Image Stabilisation: Dynamic IS 5-axis with dynamic mode
Focusing: Hybrid AF, Face Detection AF, Face Tracking, Manual Focus (via focus/zoom ring)
Display: 3.5-inch ultrabright high-resolution LCD
Viewfinder: Built-in OLED EVF
Recording Formats: XF-AVC (4K UHD 160 Mb/s, Full HD 45 Mb/s) and MP4 (4K 150 Mb/s, Full HD 35/17 Mb/s)
Audio: 2x XLR terminals, 4-channel linear PCM
Storage: Dual SD card slots
Special Modes: Infrared mode, Slow Motion (Full 5x HD), Fast Motion (Up to 1200x in 4K/Full HD)
Colour Matching: Custom picture menu for matching with other Canon cameras

FAQs

1. Can I use the Canon XA60 for livestreaming?

Yes, the XA60 supports UVC livestreaming. You can stream HD video directly to a Windows or macOS computer via USB (note that audio output through USB is not supported).

2. What recording formats does the XA60 support?

The camcorder records in both XF-AVC and MP4 formats. You can capture 4K UHD in XF-AVC at 160 Mb/s or MP4 at 150 Mb/s, alongside various Full HD options.

3. Does this camera have image stabilisation?

Absolutely. It features Canon's Dynamic IS 5-axis image stabilisation with dynamic mode to minimise camera shake and ensure smooth, professional motion video.

4. Are there professional audio inputs included?

Yes, the XA60 includes a detachable handle featuring two XLR terminals and supports 4-channel linear PCM audio recording.

5. What is OSD Time Stamp recording?

On-Screen Display (OSD) recording embeds the date, time, and timecode directly into the video frames. This is a crucial feature for legal, security, and law enforcement videographers who require verifiable footage.

Application Use Cases

* Event and Corporate Videography: The versatile 20x optical zoom and reliable Face Tracking AF make it easy to capture dynamic keynote speakers and wide crowd shots without losing focus.

* Legal and Law Enforcement: Utilise the OSD Time Stamp feature to embed permanent, unalterable timecode and date data directly into your footage for strict compliance and evidentiary purposes.

* Live Broadcasting and Worship: Take advantage of the UVC livestreaming capability to send a clean HD video feed straight to your broadcasting software, streamlining your live production setup.

More Information

More Information
Best Seller	No
Brands	Canon
GTIN/UPC Code	4549292202243
Cashback Enable	No
Wi-Fi Enabled	Yes
Product Weight	1.000000
External Battery Charger	No
HDR Mode	No
Face Detection	No
Panoroma Mode	No
