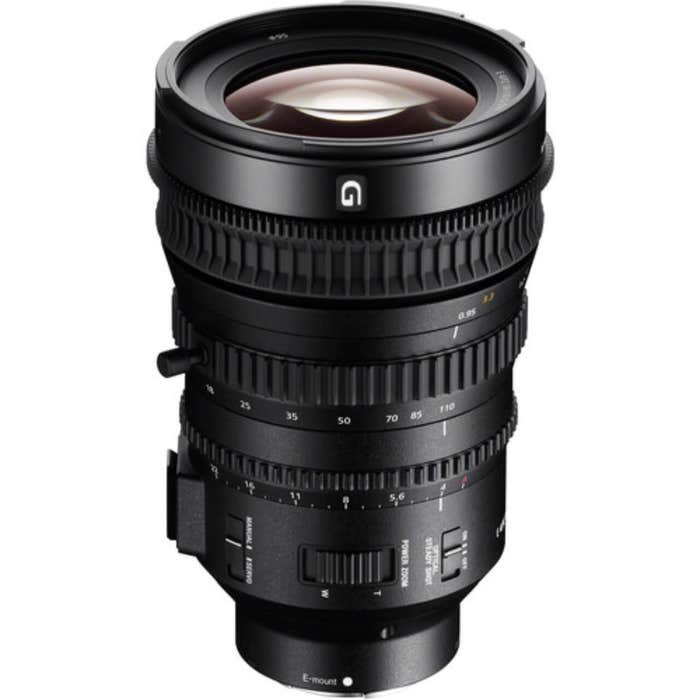

Sony E PZ 18-110mm f/4 G OSS Lens

With a wide focal-length range and a constant f/4 aperture in a compact form factor, the Sony E PZ 18-110mm f/4 G OSS Lens offers videographers and cinematographers a versatile lens choice for lightweight operations. While the lens may seem small, it has professional features to back it up. The 18-110m focal-length range covers moderately wide to narrow angles-of-view. Sony's built-in Smooth Motion Optics leverage the internal mechanics of the lens to minimize focus breathing, focus shifting, and other anomalies that would otherwise be noticeable when adjusting the lens during recording.

The body of the lens sports separate focus, zoom, and iris rings for complete manual control. Just pull the focus ring back and full-time manual focus is engaged. The focus ring itself has built-in cinema-standard gearing for follow-focus compatibility. Zoom functionality can be operated both manually and electronically. The zoom ring is connected to the lens mechanically, so crash-zooms can be achieved without lag. Iris operation can be done automatically, or by rotating the iris ring. By disengaging the iris click switch, manual iris adjustments can be made smoothly.

For smaller, less robust cameras, a quick-release tripod foot is included. The foot secures towards the rear of the lens for tripod use. Alternatively, a conventional lens support can be attached near front of the lens for compatibility with rod-based lens supports. The filter thread will accept 95mm-diameter round filters and the included lens cap. A lens hood is also included for minimizing flare. The hood's shuttered design can be closed when the camera is not in use.

Key Features

• APS-C/Super35 E-Mount compatibility for versatile cinema production.
• Constant f/4 to f/22 aperture range across the entire zoom.
• Smooth Motion Optics (SMO) to minimise focus breathing, axial shift, and focus shift.
• Switchable manual and servo (powered) zoom for lag-free crash zooms or smooth pulls.
• Three independent control rings for focus, zoom, and iris.
• Built-in cinema-standard gearing on the focus ring for follow-focus systems.
• Optical SteadyShot image stabilisation for smoother handheld footage.

Benefits & Applications

• Run-and-Gun Documentary Filmmaking: The lightweight, compact design and versatile 18-110mm range mean you can adapt to unpredictable scenes without constantly changing lenses.
• Professional Cinema Rigs: With built-in cinema-standard gearing and a removable tripod foot, this lens integrates seamlessly with your follow-focus systems and rod-based supports.
• Smooth, Silent Adjustments: The de-clickable iris ring and Smooth Motion Optics ensure that your focus pulls and exposure changes are completely silent and free from distracting optical breathing.

Specifications

• Mount Type: Sony E-Mount
• Format Compatibility: APS-C / Super 35mm
• Focal Length: 18-110mm
• Maximum Aperture: f/4
• Minimum Aperture: f/22
• Lens Elements: One Aspherical and two ED (Extra-low Dispersion) elements
• Focus Type: Internal Focus
• Image Stabilisation: Optical SteadyShot (OSS)
• Filter Thread: 95mm
• Included Accessories: Quick-release tripod foot, shuttered lens hood, lens cap

FAQs

1. Does this lens suffer from focus breathing when pulling focus?

No, the Sony PZ 18-110mm features Smooth Motion Optics (SMO) specifically designed to minimise focus breathing, axial shift, and focus shift during recording.

2. Can I use a follow-focus system with this lens?

Yes, the focus ring features built-in cinema-standard gearing, making it fully compatible with professional follow-focus rigs.

3. Does the zoom ring have a mechanical connection?

Yes, the zoom ring is mechanically connected, allowing for true, lag-free crash zooms. You can also switch to smooth servo (powered) zoom when needed.

4. Is the aperture ring de-clickable for video?

Absolutely. You can disengage the iris click switch to allow for smooth, silent manual aperture adjustments while rolling.

5. What size filters does this lens take?

The lens features a large 95mm front filter thread for attaching circular NDs, polarisers, or protective filters.

How to Use / Care Instructions

• To engage full-time manual focus, simply pull the focus ring back toward the camera body.
• For smooth iris transitions during a take, disengage the iris click switch located on the lens barrel.
• When mounting to smaller cameras, utilise the included quick-release tripod foot at the rear of the lens to prevent stress on the camera's lens mount.
• Keep the shuttered lens hood closed when the camera is not in use to protect the front element from dust and scratches.
