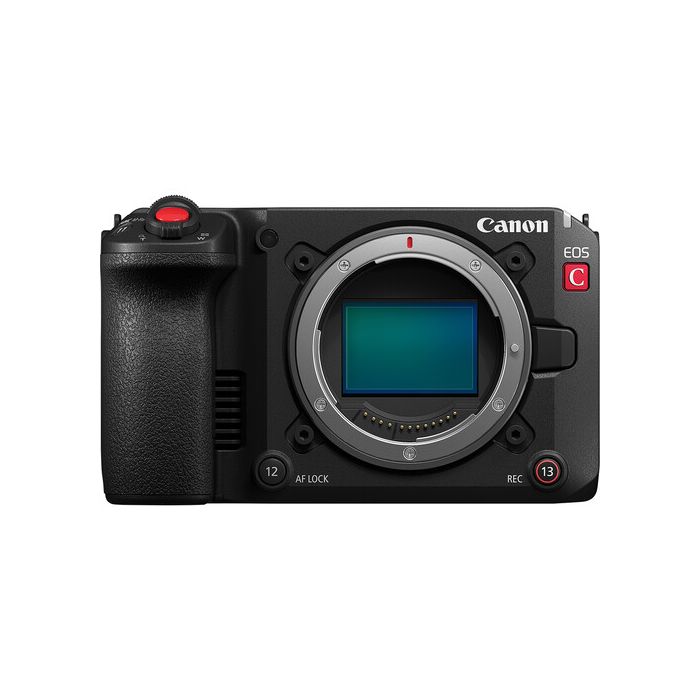

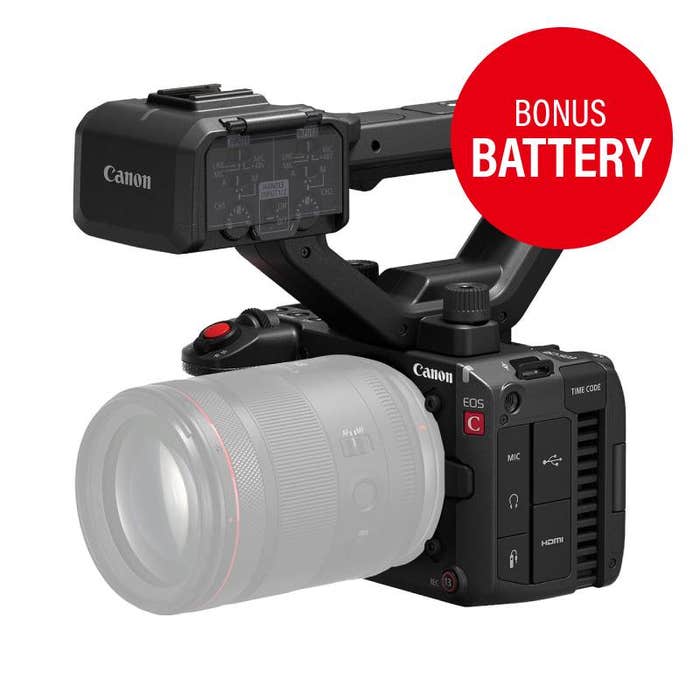

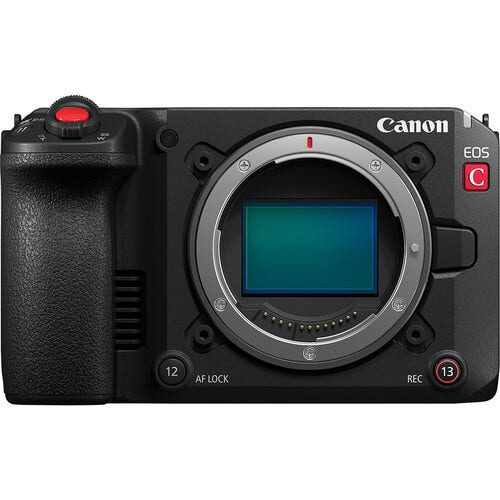

Canon EOS C50 7K Full-Frame Cinema Camera

7K Full-Frame CMOS Sensor

At the heart of the EOS C50 is a 7K back-illuminated full-frame CMOS sensor, designed for outstanding clarity and low noise across a wide range of lighting conditions. It delivers over 15 stops of dynamic range in full-frame mode and offers the flexibility of oversampled 4K60 recording from the full 7K capture.

3:2 Open Gate Recording

For the first time in the Cinema EOS line, the C50 supports Open Gate recording. Shooting in 3:2 mode unlocks the full sensor area, ideal for cropping and reframing in post, or for creative work with anamorphic lenses.

Internal RAW and High Frame Rate Options

Record in 7K60 Cinema RAW Light with three 12-bit modes (HQ, ST, LT) for maximum control in post. For broadcast and production-friendly workflows, capture 10-bit 4:2:2 XF-AVC footage at up to 120 fps with no sensor crop. Slow motion is supported up to 4K120 and 2K180. Additional formats such as XF-AVC S and XF-HEVC S simplify file management while maintaining metadata integrity.

Anamorphic and Creative Tools

Anamorphic de-squeeze is supported internally with selectable ratios (2x, 1.8x, 1.5x, 1.3x), allowing accurate on-camera monitoring. Simultaneous crop recording offers instant delivery-ready 9:16, 9:17, or 1:1 social media formats directly from the camera, saving time in post.

Dual Base ISO and Advanced Autofocus

Dual base ISOs of 800 and 6400 in Canon Log 2 maximise dynamic range in any lighting. Canon’s Dual Pixel CMOS AF II with deep learning provides reliable subject detection for people, animals, and birds, with left/right eye priority selection. Even at high frame rates (4K120, 2K150), autofocus performance remains accurate.

Hybrid Functionality: Cinema Meets Mirrorless

Switch seamlessly into Photo Mode to use the C50 as a full-featured stills camera. Capture up to 32MP images, shoot continuously at 40fps, and enjoy the shallow depth of field and bokeh of a full-frame sensor. Dual Pixel AF II remains active, making it an ideal hybrid tool for creators.

Professional Connectivity

The compact body includes HDMI, timecode, headphone, 3.5mm mic, 2.5mm remote, and multipurpose USB-C ports. Dual card slots (CFexpress Type-B and SD) support simultaneous recording, including proxies. The detachable handle adds two full-sized XLR inputs with 48V phantom power, plus a zoom rocker and start/stop controls.

IP Workflow and Cloud Integration

With built-in Wi-Fi and XC Protocol, the C50 integrates into remote production and virtual production environments. Frame.io Camera-to-Cloud support enables instant proxy upload for streamlined collaboration, while CV Metadata output supports advanced VFX and LED volume workflows.

Vertical Shooting Interface

For social and mobile-first creators, the C50 features a native vertical UI. Menus, controls, and displays adapt automatically, with touchscreen support for start/stop recording in vertical orientation.





Key Features

* 7K Full-Frame CMOS Sensor: Back-illuminated design providing exceptional clarity, low noise, and over 15 stops of dynamic range.

* 3:2 Open Gate Recording: Unlocks the full sensor area for maximum reframing flexibility in post-production and true anamorphic shooting.

* Internal RAW & High Frame Rates: Capture 7K60 Cinema RAW Light (12-bit) internally, or shoot 10-bit 4:2:2 XF-AVC at up to 120 fps with no sensor crop.

* Dual Base ISO: Switch between base ISOs of 800 and 6400 in Canon Log 2 to maximise dynamic range in any lighting environment.

* Advanced Autofocus: Canon’s Dual Pixel CMOS AF II with deep learning ensures reliable tracking for people, animals, and birds, even at 4K120.

* True Hybrid Functionality: Switch to Photo Mode to capture stunning 32MP stills at up to 40fps with full autofocus support.

* Professional Connectivity: Features built-in Wi-Fi, Frame.io Camera-to-Cloud support, dual card slots (CFexpress Type-B and SD), and a detachable handle with dual XLR inputs.

Specifications

• Sensor: 7K Full-Frame Back-Illuminated CMOS
• Dynamic Range: 15+ stops (in full-frame mode)
• Base ISO: Dual Base ISO 800 and 6400 (Canon Log 2)
• Video Formats: Cinema RAW Light (12-bit HQ/ST/LT), XF-AVC (10-bit 4:2:2), XF-AVC S, XF-HEVC S
• Max Video Frame Rates: 7K up to 60p, 4K up to 120p, 2K up to 180p
• Photo Resolution: 32 Megapixels (up to 40fps continuous shooting)
• Autofocus System: Dual Pixel CMOS AF II with deep learning subject detection
• Anamorphic De-squeeze: Internal (2x, 1.8x, 1.5x, 1.3x)
• Media Slots: 1x CFexpress Type-B, 1x SD
• Audio Inputs: 3.5mm mic (body), 2x XLR with 48V phantom power (detachable handle)
• Connectivity: HDMI, USB-C, Timecode, Headphone, 2.5mm Remote
• Wireless: Built-in Wi-Fi, XC Protocol, Frame.io Camera-to-Cloud support

FAQs

1. Does the Canon EOS C50 support internal RAW recording?

Yes, the C50 records 7K60 Cinema RAW Light internally in three 12-bit modes (HQ, ST, LT) directly to CFexpress Type-B cards.

2. Can I use the C50 for photography as well as video?

Absolutely. The C50 features a dedicated Photo Mode that captures 32MP stills at up to 40fps, with full support for Dual Pixel CMOS AF II.

3. What is Open Gate recording and why is it useful?

Open Gate recording uses the full 3:2 sensor area. This gives you maximum resolution for cropping and reframing in post-production, or when using anamorphic lenses.

4. Are there built-in XLR audio inputs?

The camera body has a 3.5mm mic input, but it also includes a detachable handle featuring two full-sized XLR inputs with 48V phantom power.

5. Does the autofocus work in high frame rate modes like 4K 120p?

Yes, Canon's Dual Pixel CMOS AF II remains fully active and accurate even when shooting slow motion at 4K120 or 2K150.

6. Can I shoot vertical video easily for social media?

Yes, the C50 has a native vertical UI that adapts menus and displays automatically, plus simultaneous crop recording for instant 9:16, 9:17, or 1:1 delivery.

Application Use Cases

* Documentary & Indie Filmmaking: Utilise the Dual Base ISO and 15+ stops of dynamic range to capture stunning footage in unpredictable lighting conditions, while keeping your rig compact.

* Commercial & Virtual Production: Leverage the built-in XC Protocol and CV Metadata output to seamlessly integrate the C50 into advanced VFX workflows and LED volume stages.

* Social Media Content Creation: Shoot in 3:2 Open Gate or use the simultaneous crop recording to instantly deliver 9:16 vertical formats, taking advantage of the native vertical UI.

* Hybrid Wedding & Event Coverage: Switch effortlessly between 7K cinematic video and 32MP high-speed bursts at 40fps, ensuring you never miss a pivotal moment.
