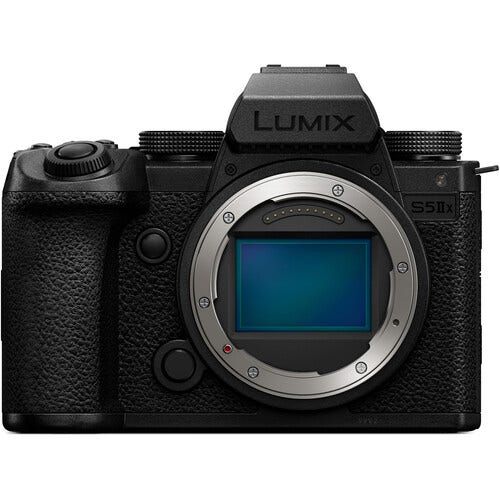

Panasonic Lumix S5 IIX Mirrorless Camera Body

New Sensor and Processing Engine

The Panasonic S5 II's enhanced full-frame 24.2MP CMOS sensor includes a newly-developed Phase Hybrid AF system for Lumix-series cameras that delivers 779 phase-detection points for noticeably better subject tracking. The image processing engine is been updated with L2 technology. The sensor offers a practical ISO 100-51200 range that can be enlarged to ISO 50-204800 for working in a variety of lighting settings, balancing high sensitivity and a wide dynamic range. The S5 II offers full-resolution shooting at up to 9 fps with the mechanical shutter and up to 30 fps with the electronic shutter, making it well-suited for action and quickly moving subjects. Additionally, the Lumix S5 II makes use of sensor-shift stabilization technology and has a High-Resolution mode that allows users to record and combine eight consecutive exposures to produce a single 96MP raw or JPEG file. This mode provides an image with a resolution of 12000 by 8000 pixels, making it ideal for static situations and when using a tripod. It also produces a more highly detailed and color-accurate image than a single shot alone can.

6K and 4K Video Recording

In addition to still images, the Lumix S5 II has excellent video recording capabilities. Up to 30 minutes of full-frame 6K30p 4:2:0 10-bit color video can be recorded, while DCI and UHD 4K60p 4:2:2 10-bit video can be recorded for an indefinite amount of time. For videographers who want to produce high-resolution slow-motion videos, the camera enables 120p video capture, and RAW HDMI output is accessible with an extra license upgrade. This camera comes with V-Log pre-installed, which allows for the capture of a flat, neutral gamma curve and an equivalent 14+ stops of dynamic range. This feature allows for accurate management of color data in post-production and fluid editing of material taken with VariCam cameras.

Pro-Level Video Features

The S5 IIX boasts enhanced performance and usability, including the ability to output HDMI RAW video data. For videographers looking to streamline data backup and post-processing, recording and playback can be done using an external SSD via USB. Additionally, this camera supports ALL-Intra recording and ProRes recording.

Phase Hybrid AF System

The Phase Hybrid AF technology used by the S5 II, the first Lumix mirrorless camera to use it, features 779 phase-detection points for quick and accurate focusing and exceptional AF accuracy. Dependability is key when it comes to autofocus, and Phase Detection AF allows you to track the subject in six different scenarios that, up until now, had proven difficult for traditional systems to record. This means that the S5 II consistently captures the desired subject in challenging circumstances with several people in backlit or low-light settings, whether taking still photos or videos.

Dual I.S. 2 with Active I.S.

Panasonic Lumix S5 II features a Dual I.S. that provides complete support for handheld use. 2 image stabilization system, which eliminates up to 6.5 stops of camera shake to produce the sharpest handheld images possible. The camera has a newly created Active I.S. that was built for video applications. image stabilization while the camera is moving and capturing the video system for walking shots.

Key Features

24.2MP full-frame CMOS sensor paired with an updated L2 technology processing engine.
Phase Hybrid AF system featuring 779 phase-detection points for exceptional subject tracking.
Internal 6K30p 4:2:0 10-bit (up to 30 minutes) and unlimited DCI/UHD 4K60p 4:2:2 10-bit video recording.
Pro-level video capabilities including ALL-Intra, ProRes, and HDMI RAW video data output.
Direct recording and playback to an external SSD via USB for streamlined workflows.
Dual I.S. 2 offering up to 6.5 stops of stabilisation, plus Active I.S. for smooth walking shots.
96MP High-Resolution mode producing incredibly detailed 12000 x 8000 pixel images.
Pre-installed V-Log delivering 14+ stops of dynamic range for precise colour grading.

Benefits

* Flawless Autofocus: The new Phase Hybrid AF system confidently tracks subjects across six different challenging scenarios, ensuring you never miss a critical moment.

* Cinema-Ready Video: With built-in ProRes, ALL-Intra, and RAW HDMI output, you get broadcast-quality files ready for heavy post-production and fluid editing.

* Streamlined Workflow: Recording directly to an external SSD via USB simplifies data backup and speeds up your post-processing pipeline.

* Uncompromised Handheld Shooting: Dual I.S. 2 and Active I.S. work together to eliminate camera shake, allowing you to capture smooth, professional footage without relying on a gimbal.

Specifications

Sensor: 24.2MP Full-Frame CMOS
Autofocus: Phase Hybrid AF (779 phase-detection points)
ISO Range: 100-51200 (Expandable to 50-204800)
Continuous Shooting: Up to 9 fps (Mechanical) / 30 fps (Electronic)
High-Resolution Mode: 96MP (12000 x 8000 pixels)
Video Resolution: 6K30p (up to 30 mins), DCI/UHD 4K60p (unlimited)
Video Codecs: 10-bit 4:2:2 / 4:2:0, ALL-Intra, ProRes
Dynamic Range: 14+ stops (V-Log pre-installed)
Image Stabilisation: Dual I.S. 2 (up to 6.5 stops) and Active I.S.

FAQs

1. Does the Panasonic Lumix S5 IIX support external SSD recording?

Yes, the S5 IIX allows you to record and play back video directly using an external SSD via USB, streamlining your data backup and post-processing workflow.

2. What is the difference between the S5 II and the S5 IIX for video?

The S5 IIX boasts enhanced pro-level video features out of the box, including HDMI RAW video data output, ALL-Intra recording, ProRes recording, and external SSD support via USB.

3. How does the Phase Hybrid AF perform in low light?

With 779 phase-detection points, the Phase Hybrid AF system is designed to consistently capture and track subjects even in challenging low-light or strongly backlit environments.

4. Can I shoot slow-motion video with this camera?

Yes, the camera supports up to 120p video capture, allowing videographers to produce high-resolution slow-motion footage.

5. Is there a recording limit for 4K video?

No, you can record DCI and UHD 4K60p 4:2:2 10-bit video for an indefinite amount of time, provided you have sufficient battery and storage space.

How to Use

To get the most out of your Panasonic Lumix S5 IIX, ensure your firmware is always up to date to benefit from the latest autofocus refinements. When shooting high-bitrate video like ProRes or ALL-Intra, use a high-speed external SSD connected via the USB-C port to avoid dropped frames and speed up your editing workflow. For landscape or architectural photography, mount the camera on a sturdy tripod and engage the 96MP High-Resolution mode to capture maximum detail. Always keep the sensor protected with a body cap when changing lenses, and store the camera in a dry, dust-free environment when not in use.

More Information
Specification	4K, Image Stabilization, Touchscreen
Best Seller	No
Pixels	25.28 Megapixel
Max Resolution	6000 x 4000
Focus Mode	Continuous-Servo AF, Manual Focus, Single-Servo AF
Metering Method	Center-Weighted Average, Highlight Weighted, Multiple, Spot
Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
Aspect Ratio	1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Video Recording	Yes
Audio Recording	Yes
Interval Recording	Yes
Live View	Yes
Screen Coverage	100%
Brands	Panasonic
GTIN/UPC Code	8887549853326
Cashback Enable	No
Focus Type	Auto & Manual
Image Sensor Type / Format	35mm Full Frame
Effective Pixels	24.2 Megapixel
Wi-Fi Enabled	Yes
Product Weight	1.000000
Height	10.24cm
Product Width	13.44cm
Product Depth	9.02cm
Camera Body Weight	658 g
Memory Card Type	Dual Slot: SD/SDHC/SDXC (UHS-II)
Viewfinder Coverage	100%
Display Screen	Free-Angle Tilting Touchscreen LCD
Screen Resolution	1,840,000 Dot
Screen Size	3"
Shutter	Electronic Shutter, Mechanical Focal Plane Shutter
Self Timer	2/10-Second Delay
Sensor Format	35.6 x 23.8 mm (Full-Frame) CMOS
Shutter Speeds	1/8000 to 60 Seconds
Microphone	Stereo
External Battery Charger	No
Max Sync Speed	1/250 Second
Flash	No
HDR Mode	No
File Formats	JPEG, Raw
Face Detection	No
Autofocus Points	Contrast Detection, Phase Detection: 779
ISO Sensitivity	100 to 51,200 (Extended: 50 to 204,800)
White Balance Modes	AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
Panoroma Mode	No
Maximum ISO	51,200
Minimum ISO	100
